VEVOR DXKYJDJTODP37A3YTV7 3.7HP Air Compressor Motor 3450 RPM Single Phase Electric Motor 5/8 in. Keyed shaft 230V 17.2A 56 Frame CW/CCW Rotation

30 Day Money Back Guarantee with FREE return shipping.

This product has never been installed. Quality guaranteed. Packaging may show handling / shipping wear. If you are not fully satisfied with your order, please reach out to us and we will make it right.

Disclaimer: We have no affiliation with the manufacturer of this product, and although it will come with our “30 Day Money Back Guarantee with FREE return shipping”, It does not come with any additional benefit that the manufacturer offers, including, but not limited to, warranty or quality control standards set forth by the original manufacturer (we are not an authorized reseller).

About This Product

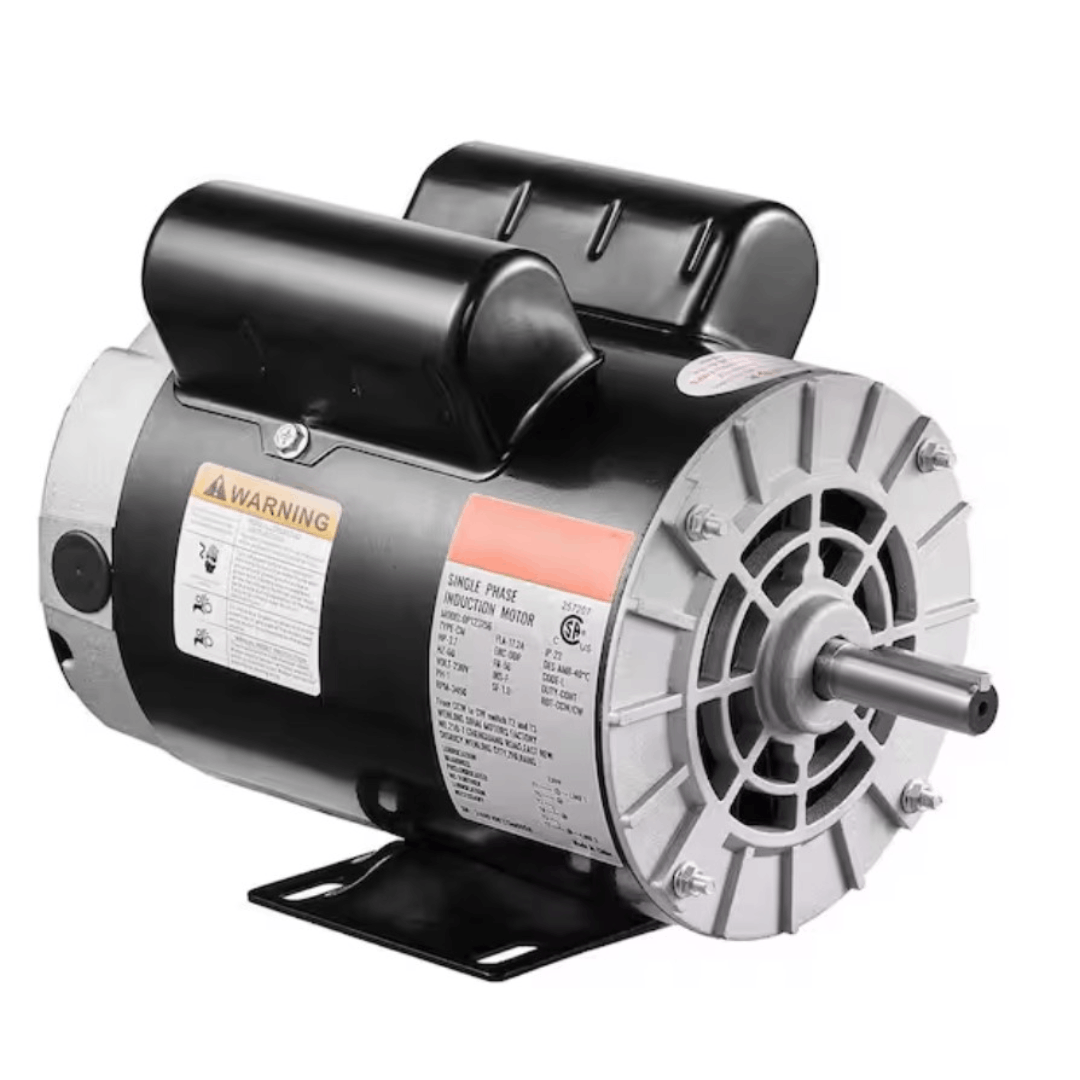

Power your air compressor with efficiency and strength using the VEVOR 3.7HP motor. Operating at 230V with a 17.2A current, this robust motor features a 56 frame, 1.88 in. shaft length, and a 5/8 in. keyed shaft. Its dual rotation capability (CW/CCW) offers flexible installation, making it an excellent fit for air compressors in both industrial and commercial settings.

Highlights

• High Performance: 3.7HP, 3450 RPM, single-phase, 230V, 60Hz, 17.2A, with a service factor of 1.0

• Durable Frame: 56 frame with a 5/8 in. keyed shaft, 1.88 in. shaft length, and 0.188 in. keyway

• Open Drip-Proof Design: Ideal for clean, dry environments; constructed from high-quality steel for enhanced durability and engine protection

• Reversible Rotation: Supports both clockwise (CW) and counterclockwise (CCW) operation, allowing for flexible wiring

• Built for Longevity: Features a sturdy steel housing and efficient heat dissipation for extended use

Specifications:
Voltage: 230V | Frequency: 60Hz | Current: 17.2A
Rotation Speed: 3450 RPM | Service Factor: 1.0
Enclosure: ODP | Frame Size: 56
Shaft Diameter: 5/8 in. | Shaft Length: 1.88 in.
Keyway Size: 0.188 in. | Net Weight: 34.3 lbs. (15.55 kg)

Package Includes:
1 x Air Compressor Motor
