Square D SC816D200C Homeline 200 Amp 8-Space 16-Circuit Outdoor Ring-Type Overhead/Underground Surface Main Breaker CSED, Dual Disconnect

30 Day Money Back Guarantee with FREE return shipping.

This product has never been installed. Quality guaranteed. Packaging may show handling / shipping wear. If you are not fully satisfied with your order, please reach out to us and we will make it right.

Disclaimer: We have no affiliation with the manufacturer of this product, and although it will come with our “30 Day Money Back Guarantee with FREE return shipping”, It does not come with any additional benefit that the manufacturer offers, including, but not limited to, warranty or quality control standards set forth by the original manufacturer (we are not an authorized reseller).

About This Product

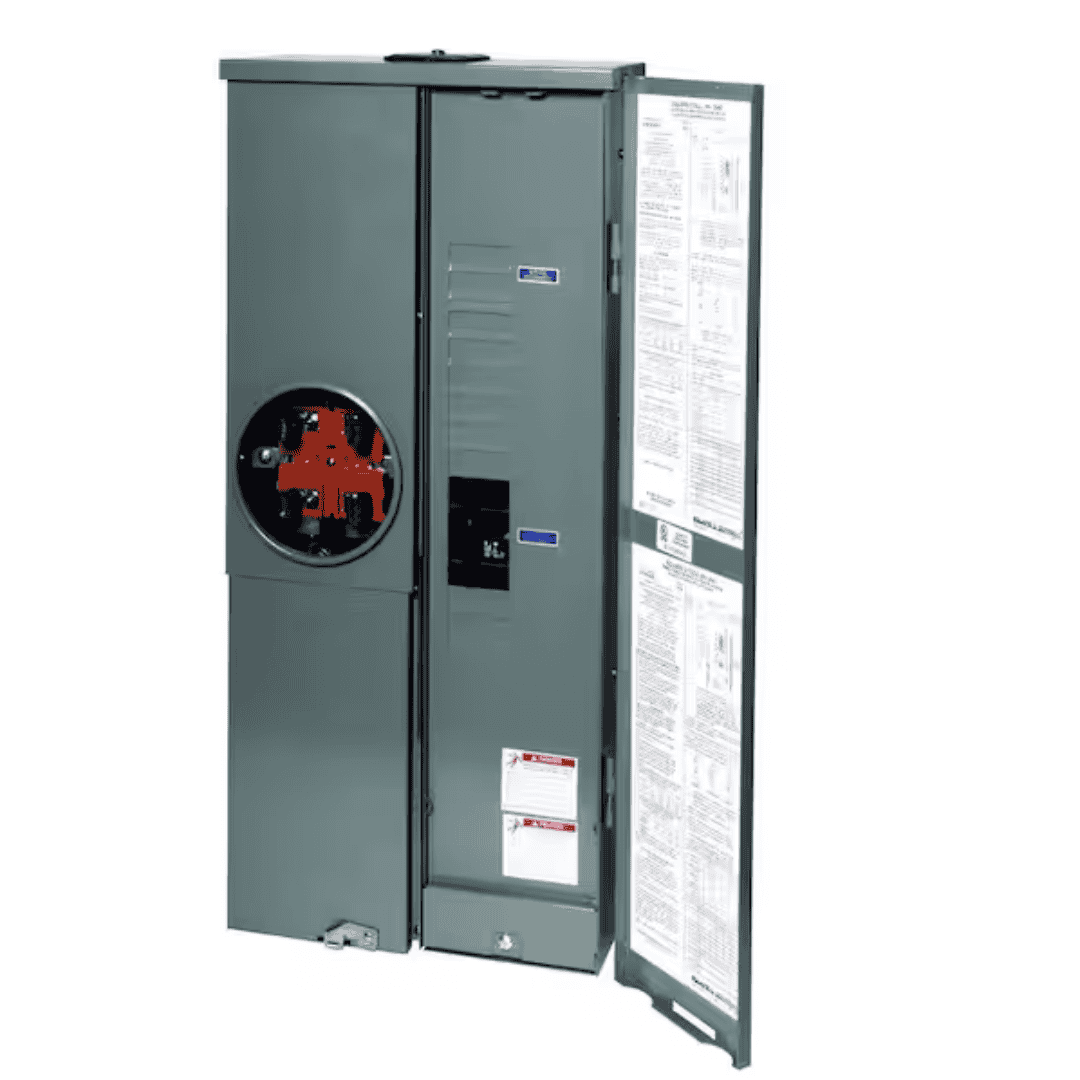

This 200 Amp 8-space 16-circuit outdoor combination meter socket and main breaker load center is designed for use as a combination service entrance device. It is ANSI certified and UL listed with a maximum 10,000 AIR rating. The unit includes a ring-type meter cover and a single-phase, 4-jaw meter socket. It can be used for either overhead or underground service applications and meets EUSERC specifications. It may be surface mounted or converted to semi-flush installation with the proper flange kit. Built with a plated aluminum bus bar, this load center is tested for compatibility with Homeline circuit breakers only. It is designed for contractors, remodelers, builders, and homeowners who want a practical and efficient installation solution. The unit is engineered to support faster installation and reduced wire usage.

Highlights

• 200 Amp 8-space 16-circuit ring-type main breaker combination service entrance device

• Suitable for use as service entrance equipment

• Accepts plug-on secondary surge arrestor and features a plug-in design for easier installation

• Ring-type configuration with no bypass

• Compatible with Homeline breakers only

• NEMA 3R enclosure for outdoor applications

• Includes a 4-jaw meter socket

• Straight-in mains design helps reduce cable use and installation time

• Durable thermoplastic interior assembly

• Slot/square drive screws allow use of either a flat blade screwdriver or square-head driver for secure tightening

• UL listed and ANSI certified
