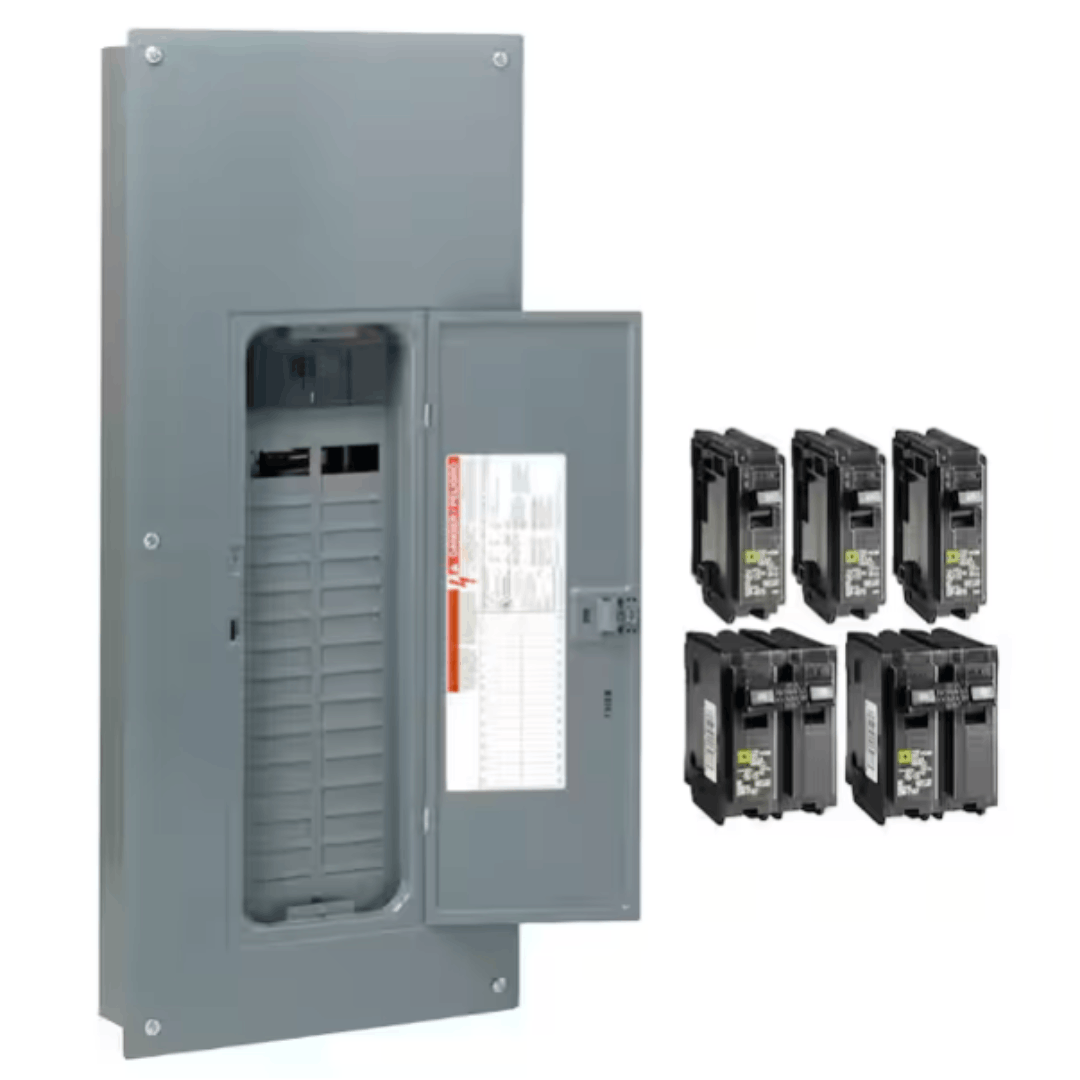

Square D HOM3060M200PCVP Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker plug-on neutral Electrical Panel with Cover(HOM3060M200PCVP)

30 Day Money Back Guarantee with FREE return shipping.

This product has never been installed. Quality guaranteed. Packaging may show handling / shipping wear. If you are not fully satisfied with your order, please reach out to us and we will make it right.

Disclaimer: We have no affiliation with the manufacturer of this product, and although it will come with our “30 Day Money Back Guarantee with FREE return shipping”, It does not come with any additional benefit that the manufacturer offers, including, but not limited to, warranty or quality control standards set forth by the original manufacturer (we are not an authorized reseller).

About This Product

The Square D Homeline Value Pack 200 Amp 30-Space 60-Circuit Indoor Convertible Main Breaker Load Center delivers safety, reliability, and value for contractors, remodelers, and homeowners. Built with a plated aluminum bus bar and designed for fast installation, this UL-listed load center is fully compatible with Square D Homeline circuit breakers. Its plug-on neutral design, flexible breaker options, and rugged construction make it a dependable choice for both residential and commercial power distribution.

Highlights

• Plug-on neutral design supports Homeline plug-on neutral combination arc fault breakers in any space

• Each pole space accommodates full-size, tandem, or quad Homeline breakers for setup flexibility

• Neutral and ground bar accepts up to (3) #10–14 equipment grounds for wiring versatility

• Includes: (3) HOM120 20 Amp single-pole breakers, (2) HOM230 30 Amp double-pole breakers, and a combination flush/surface cover

• Compatible with plug-on secondary surge arrestor (sold separately) for enhanced protection

• Convertible overhead or underground feed by rotating the device to match feed type

• Single-phase indoor main breaker panel rated 120/240 VAC with a 22,000 AIR short circuit current rating

• Automatic flush-adjusting cover reduces installation time

• Straight-in mains design saves cable and simplifies installation

• Distributed split branch neutral includes backed-out terminal screws, offering up to 50% more terminals than UL standards require

• Rugged thermoplastic interior built for durability

• Slot/square drive screws accept flat-blade or square-head screwdrivers for proper torque

• Removable interior with single captive screw for added security and easy service

• Three ground bar mounting locations (left, right, or end) for flexible wiring access

Dimensions

Details
