About This Product

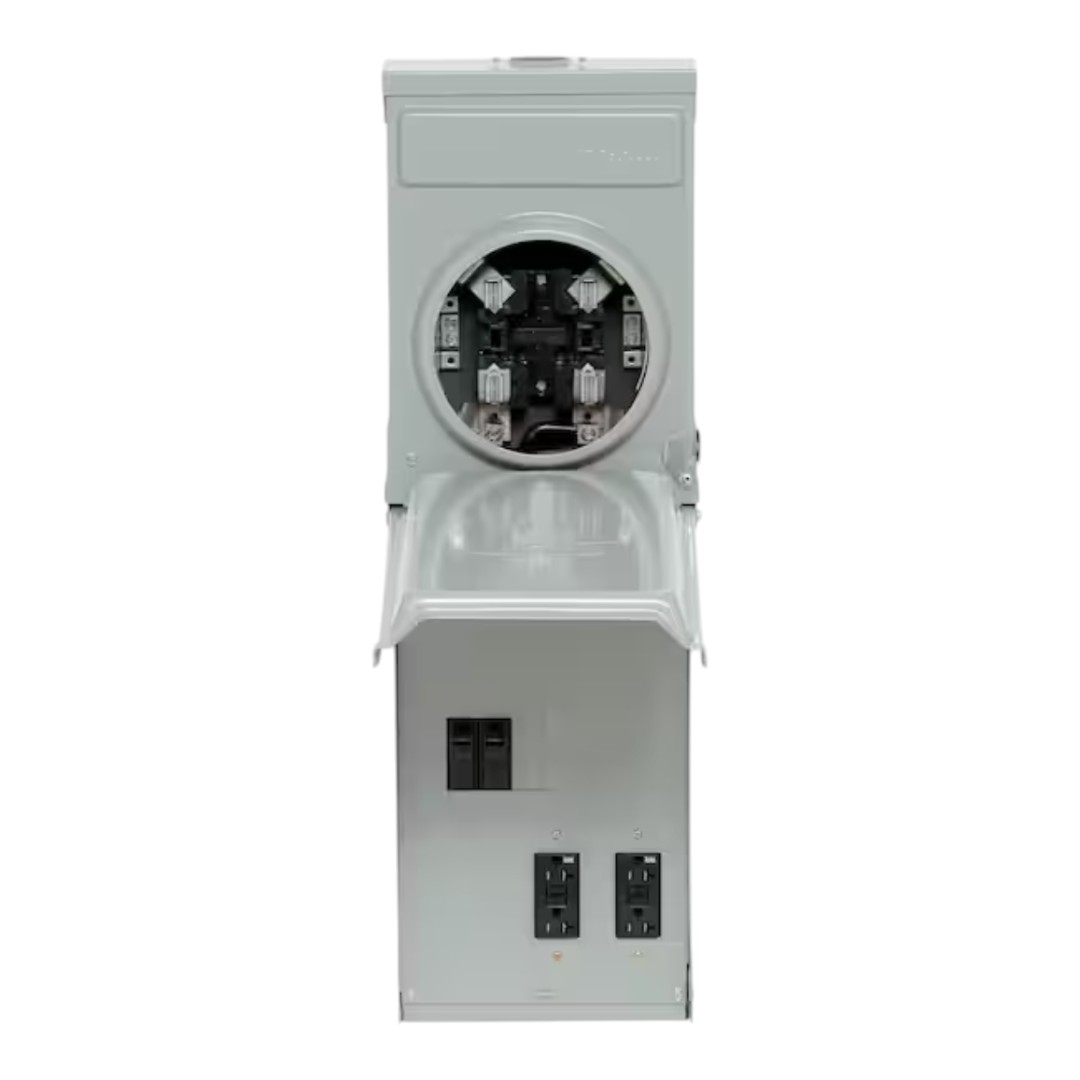

The Ringless Metered-Top Feed Temporary Power unit is factory-assembled and tested, arriving on-site ready to use, saving valuable installation time. Housed in a single, heavy-gauge NEMA 3R rainproof enclosure, it offers protection against weather, vandalism, and nuisance tripping. Lockable and robust, it safeguards receptacles, cords, plugs, and breakers while complying with NEC and OSHA standards.
Highlights
- Durable Construction: Heavy-gauge, zinc-coated steel resists corrosion and fading
- Weatherproof Enclosure: Single NEMA 3R welded-flange design protects against rain and outdoor conditions
- Secure and Lockable: Door can be padlocked to prevent power theft and vandalism
- Electrical Performance: Copper buss bar provides excellent conductivity; continuous-duty meter socket with guides and reinforced jaws
- Safe Cord Handling: Rolled door edge prevents cord damage
- Standards Compliant: ANSI certified and UL listed
Dimensions
| Load center depth (in.) | 5.5 |
| Load center height (in.) | 30.5 |
| Load center width (in.) | 10 |
| Product Depth (in.) | 5.5 in |
| Product Width (in.) | 10 in |
Details
| Application Use | Construction Site |
| Electrical Product Type | Load Center |
| Included | GFCI Receptacle(s) |
| Load Center Type | Temporary Power |
| Maximum Amperage (A) | 100 |
| Meter Socket Type | Ringless |
| NEMA Configuration | NEMA 3R |
| Number of Circuits | 3 |
| Number of Gangs | 1 |
| Number of Receptacles | 2 |
| Number of Spaces | 1 |
| Phase Type | 1 Phase |
| Product Weight (lb.) | 21.86 lb |
| Receptacle Amperage | 20 |
| Receptacle Configuration | 5-20 |
| Returnable | 30-Day |
| Voltage (V) | 240 |
